Interactive calculators and simulation models designed to assist hardware engineers in analyzing non-linearities, noise, and signal degradation.

Active Simulator

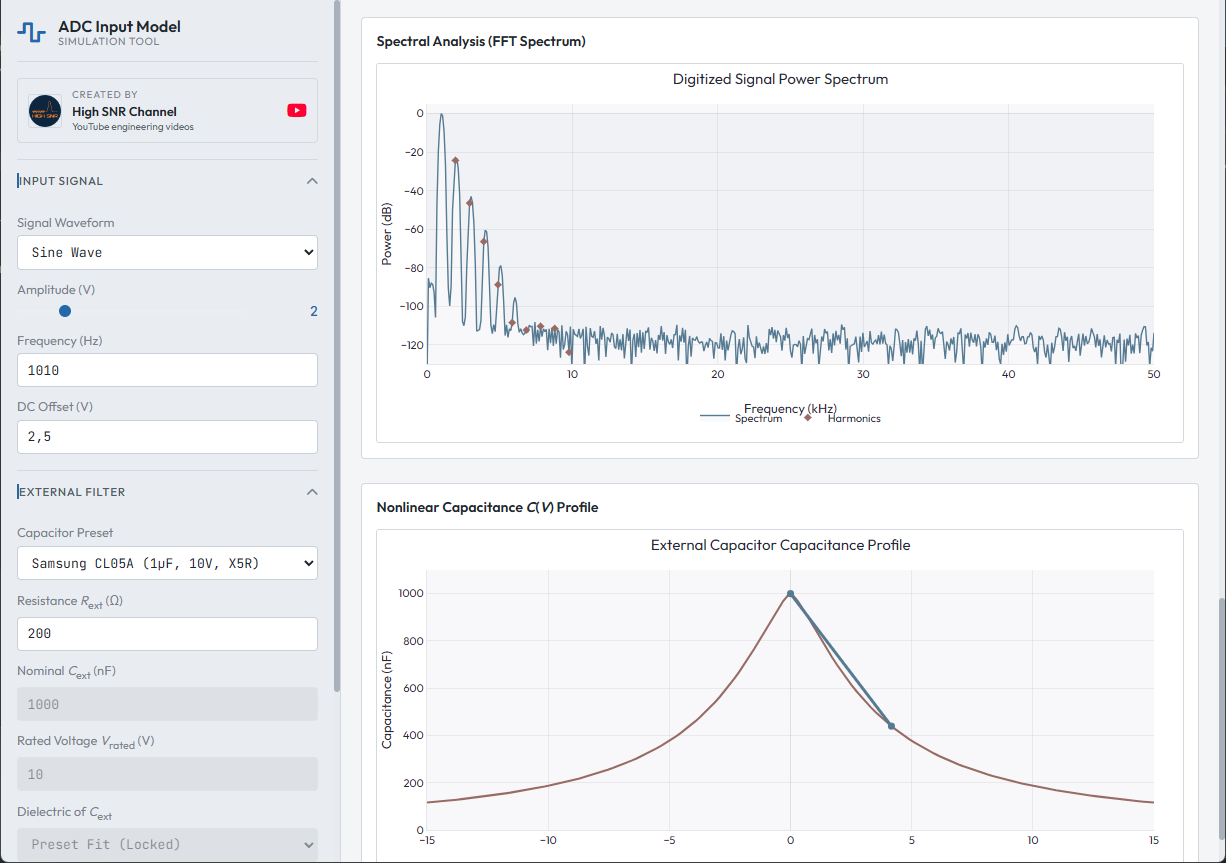

ADC Input Stage Simulator

An interactive simulator and design space explorer for analog-to-digital converter frontends. Simulates the physical impact of non-linear capacitor DC bias (MLCC Class II) and sampling switch settling dynamics on dynamic performance metrics (THD, SNR, SINAD, ENOB).

Stiff ODE Solver Support: Integrates coupled RC networks using implicit Radau and fast semi-implicit linearization algorithms.

Unified Component Library: Dynamically loads real capacitor parameters to model voltage-dependent capacitance drops.

Dynamic Loss Decomposition: Performs ablation analysis to isolate baseline floor, C(V) non-linearity, and settling errors.

Design Space Exploration: Sweeps parameters in N-dimensional space to output interactive Plotly heatmaps.

Launch Simulator Read Research

adc-input-simulator v1.0LIVE

Active Analyzer

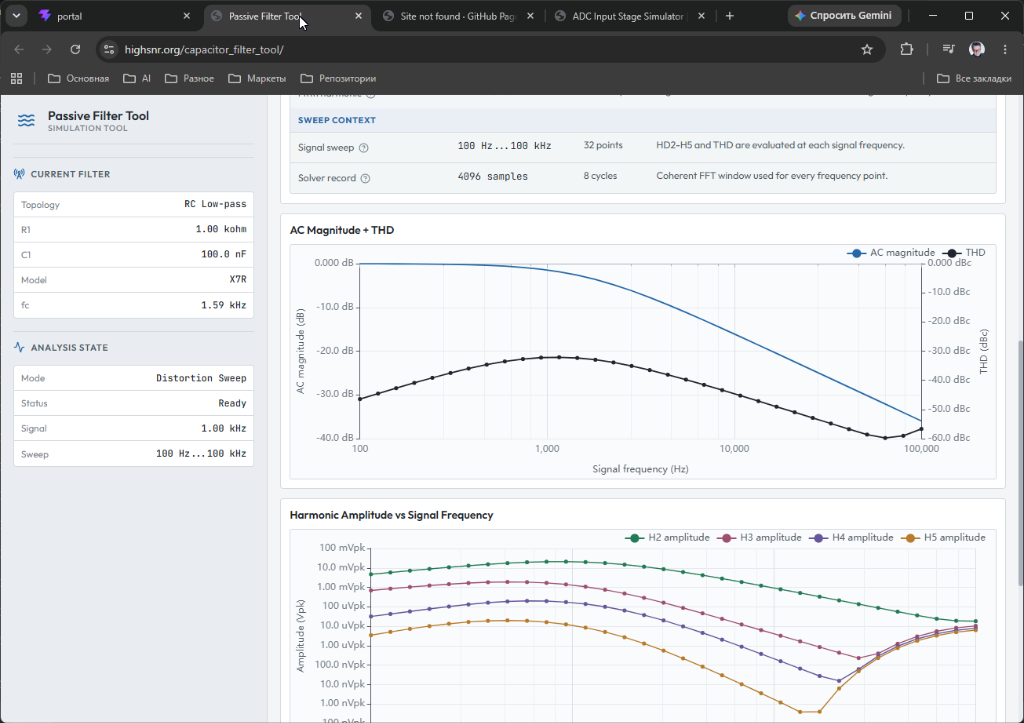

Passive Filter Distortion Analyzer

Analyze passive filters with real capacitors: ideal response, ESR/ESL/leakage, and nonlinear MLCC distortion.

Linear AC analysis: RC and RLC passive filter topologies.

Non-ideal component effects: ESR, ESL, leakage, source resistance, load resistance.

Charge-conserving models: Harmonic distortion and THD estimates for MLCC Class II.

Launch Analyzer Read Application Note

passive-filter-analyzer v0.1LIVE

Education & Visualization Tools

Web Editor

HighSNR Circuit Builder

Draw circuits in the browser and export Manim-ready Python code for videos, courses, and technical explanations.

Open launch page

Utilities Under Development

Coming Soon

SNR & ENOB Converter

Convert between Signal-to-Noise Ratio (dB) and Effective Number of Bits (ENOB) using standard quantization noise formulas.

Coming Soon

RC Filter Calculator

Calculate the 3dB cutoff frequency of resistor-capacitor (RC) low-pass and high-pass filters with interactive sliders.
